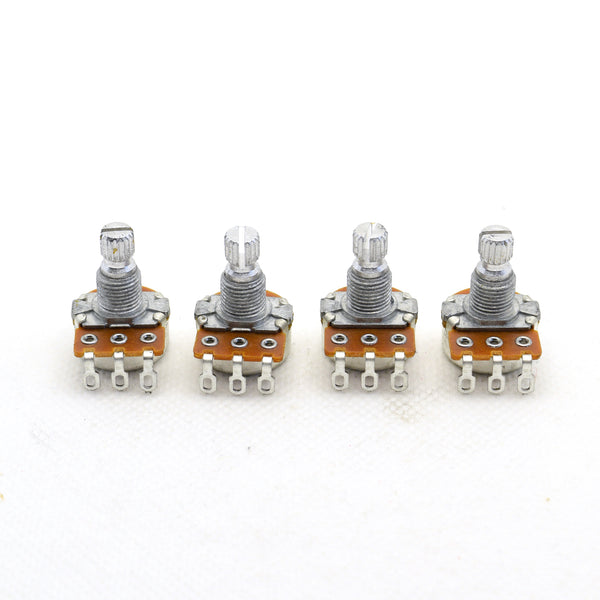

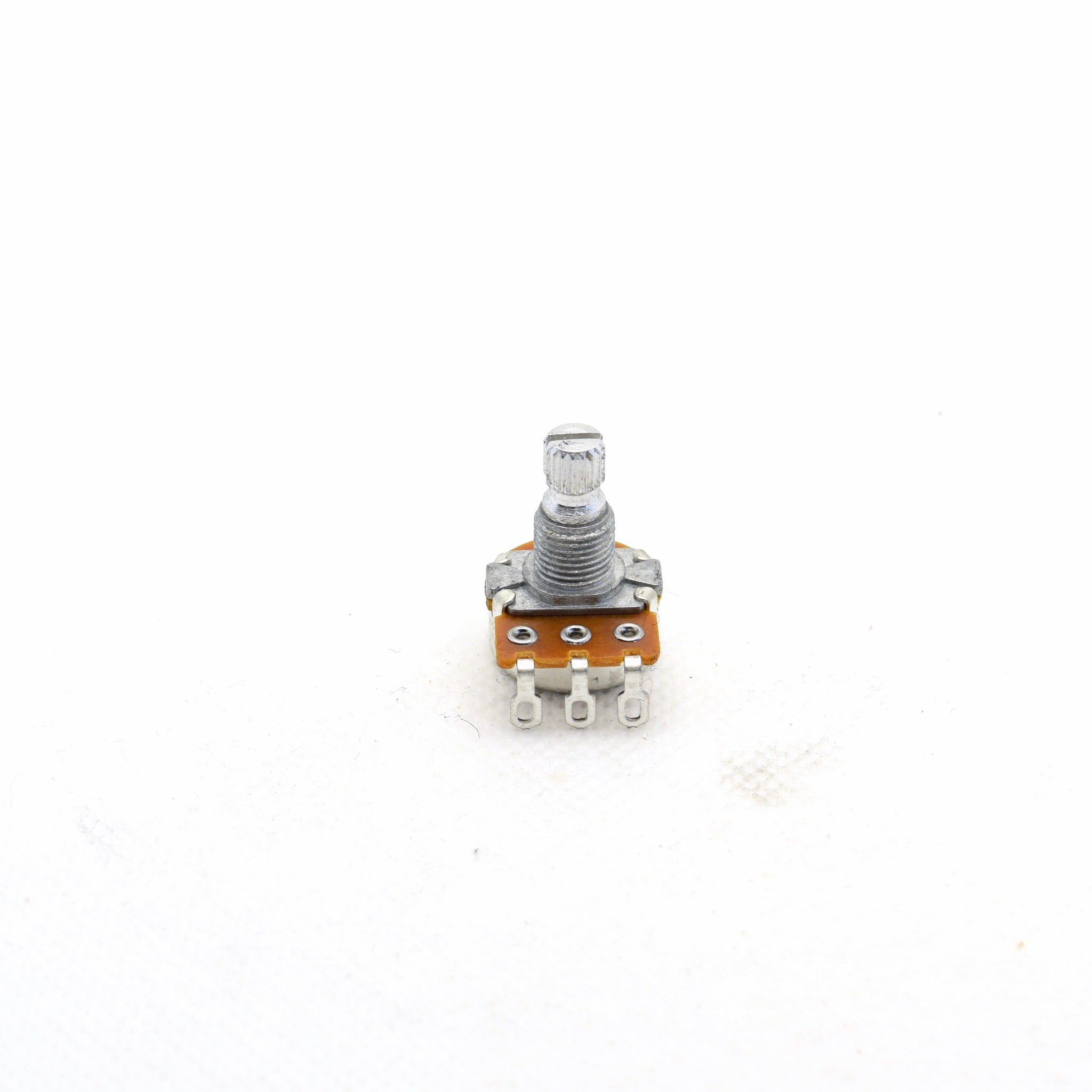

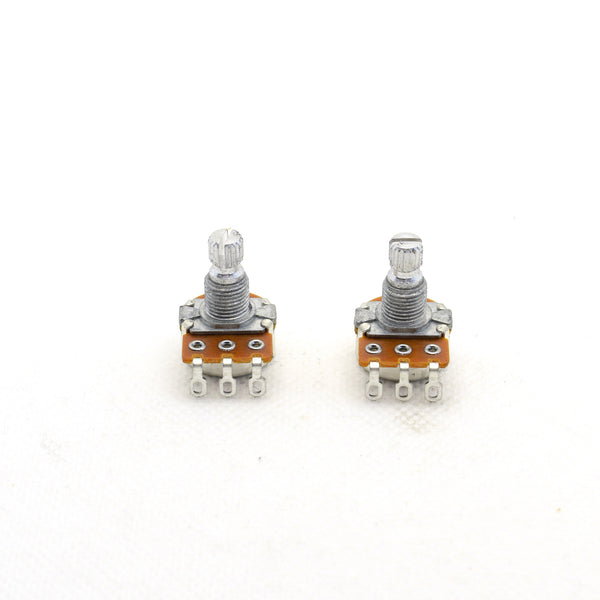

Alpha Potentiometer B500K Linear Taper Mini Pot

• 6mm diameter split shaft radial control 18 spline
• Radial control shaft 8mm long (tall) from top of threaded bushing
• Threaded bushing is 7.6mm diameter x 8mm long (tall)
• Pot barrel housing is 16.5mm diameter
• Overall length is 24.5mm (tall)

Smooth control with NO center detent.

This is a “B” linear taper pot.

The pot barrel diameter is a little smaller than a dime, making it great for tight control cavities or archtop guitar pickguard mount. 500K is commonly best paired with a humbucker.

All TGNT Alpha pots are hand-tested and are within ±15% resistance tolerance.

Check out our free downloadable potentiometer poster here

High quality, made in Korea
