Alpha Potentiometer B500K Linear Taper Pot

$7.80
Shipping calculated at checkout.

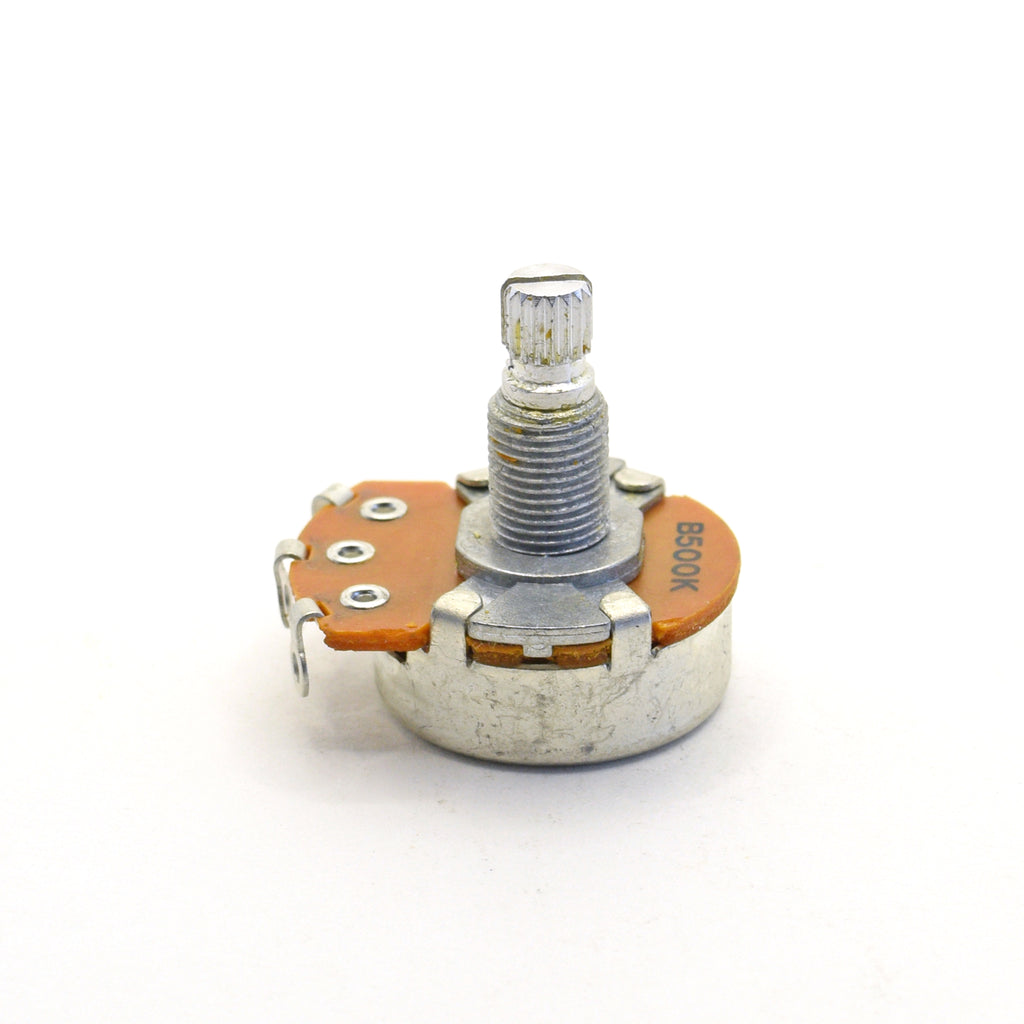

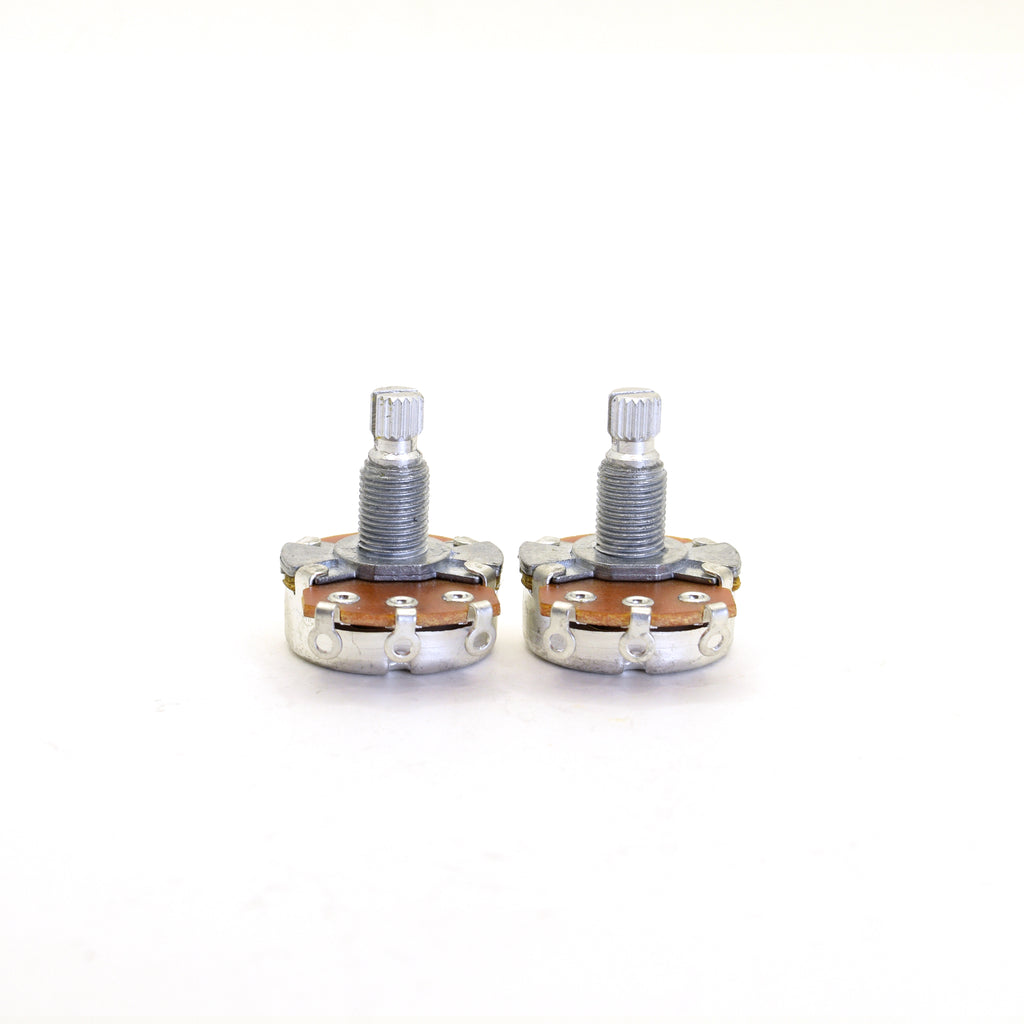

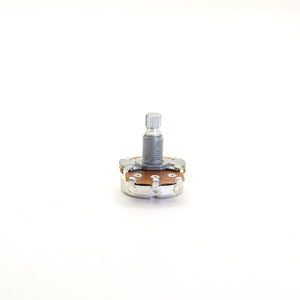

Alpha B500K Linear Potentiometer

  • 6mm diameter split shaft radial control coarse spline
  • Radial control shaft 8mm long (tall) from top of threaded bushing
  • Threaded bushing is 7.6mm diameter x 9.5mm long (tall)
  • Pot barrel housing is 24mm diameter
  • Overall length is 29.3mm (tall)

Smooth control with NO center detent.

This is a “B” linear taper pot.

500K matches great with humbucker pickups.

All TGNT Alpha pots are hand-tested and are within ±15% resistance tolerance.

Check out our free downloadable potentiometer poster here

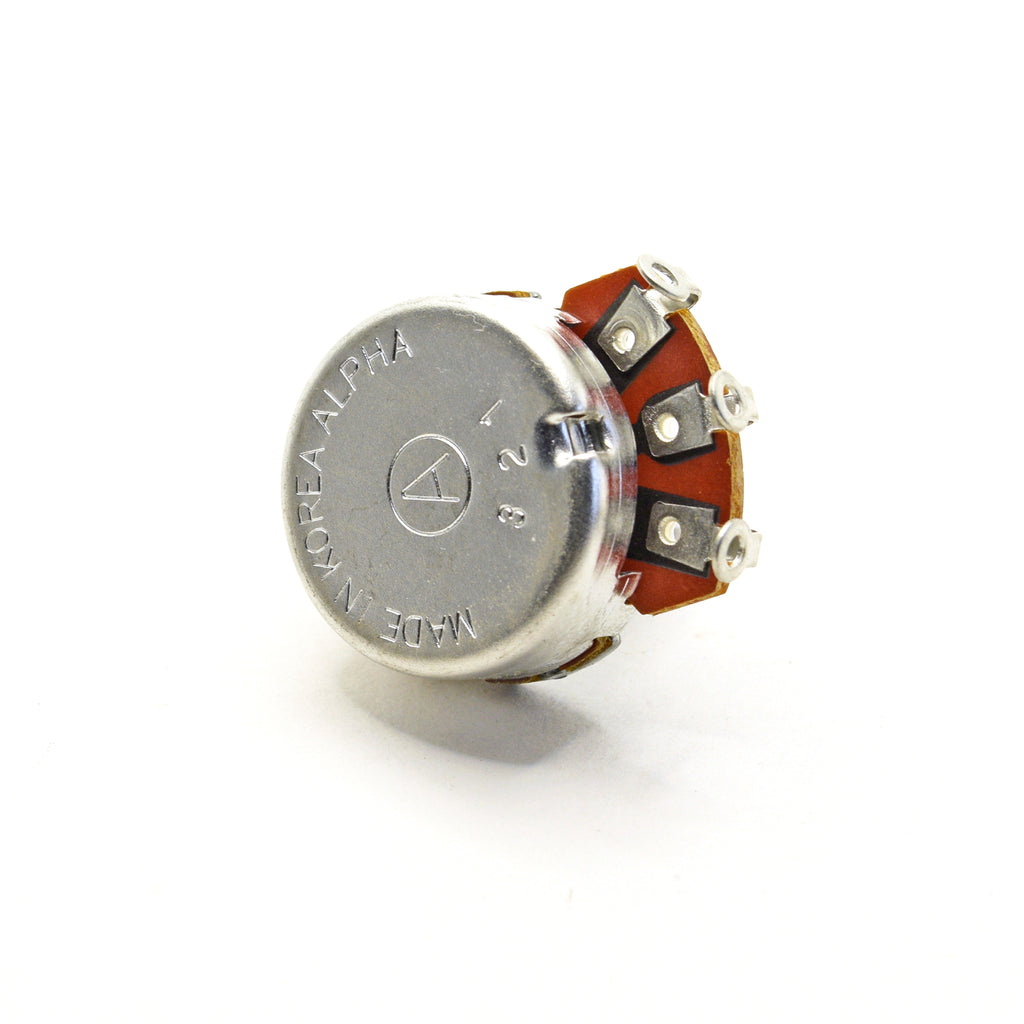

High quality, made in Korea
